Microscope Objectives

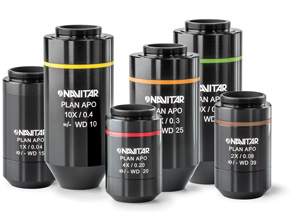

High-Performance Infinity-Corrected Microscope Objective Lens
Experience exceptional clarity and precision with advanced infinity-corrected microscope objective lenses, designed to deliver high resolving power without compromising on field of view. Ideal for demanding imaging applications, these objectives combine cutting-edge optical engineering with practical usability.



High Numerical Aperture (NA) Design
Achieve superior resolution and image sharpness, even at larger fields of view—enabling detailed observation across a broader area.



Extended Working Distance
Provides ample space for specimen manipulation, making it ideal for applications requiring hands-on interaction or additional instrumentation.

Microscope Objectives
Contact Us
Order now
  • Navitar HR
  • Evident Objectives - X Line
  • Downloads

Specification  Part Number Numerical
Aperture		 Working Distance
(mm)		 Focal
Length
(mm)
 Resolving
Power
(µm)		 Depth of Field
(µm) 		 Field
Number
(± µm)		 Compatible
Tube Lens
(EFL mm)		 Parfocal
Length
(mm)		  Mounting
Threads		 Wavelength Range
(nm)		  Availability Shop Now
High NA /
Long WD
 1X

1-55282

 0.04  15  200  8.96 184  22  200 95 M26 x 36 TPI  436 - 656 Contact Us
 Contact us Mail
2X 1-55273 0.08 39 100  4.49  46  22  200 95 M26 x 36 TPI  436 - 656 Contact Us  Contact us Mail
High NA /
Large FOV
 4X HR 1-55341  0.2 20 50   3.45 7.7 22 200 95 M26 x 36 TPI  436 - 656  Standard Product
6X HR 1-55401 0.3  25 33  1.25  3.5  22 200 95 M26 x 36 TPI  436 - 656  Standard Product
10X
HR		 1-55227 0.4 10  20 0.97  2.0 22 EFL=200 95 M26 x 36 TPI   436 - 656 Standard Product
 20X HR 1-55354 0.5 10 10 0.68 1.0  22 EFL=200 95 M26 x 36 TPI  436 - 656  Contact Us  Contact us Mail

Product Name /
Description		 Numerical
Aperture
(NA)		 Working
Distance
(WD [mm]		 Focal
Length		 Resolving Power
(µm)		 Field Number  Parfocal Distance
[mm]		 Depth of Field
(µm) 		 Mounting
Threads 		 Compatible
Tube Lens (mm) 		 Wavelength Range   Shop Now
Evident X Line 4x,
UPLXAPO4X		  0.16 13  45  2.1  26.5 45  10.74  RMS
20.32mm x 36 TPI 		 180  400 - 1000 shop button
Evident X Line 10x, UPLXAPO10X  0.4  3.1 18  0.84  26.5  45  1.72  RMS 20.32mm x 36 TPI   180  400 - 1000
Evident X Line 20x, UPLXAPO20X  0.8  0.6  9  0.42   26.5 45  0.43  RMS 20.32mm x 36 TPI   180  400 - 1000
Evident X Line 40x, UPLXAPO40X  0.95 0.18   4.5  0.35  26.5  45   0.3 RMS 20.32mm x 36 TPI   180  400 - 1000
Download Media

Navitar HR Objective Line Flyer
