SWIR Lenses

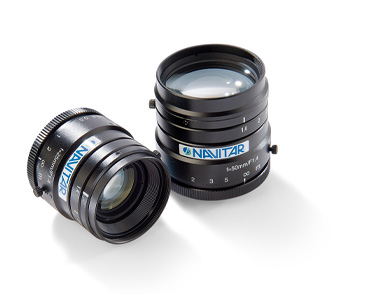

Navitar's fixed focal length SWIR Hyperspectral lenses are specifically designed for SWIR (short wave infrared) cameras and applications. Lenses are available in 8 mm, 12.5mm, 16mm, 25mm, 35mm and 50mm focal lengths. These lenses are ideal for a variety of imaging applications where SWIR cameras are employed such as perimeter surveillance, food sorting, toll-way monitoring, border and port security, quality control or aerial imaging.
-
Specially coated for optimized imaging in the SWIR wavelength.
-
Constructed for rugged environments.
-
Standard thumb screws for locking focus and iris functions.
-
Designed to cover 1" (16 mm diagonal) sensors.
-
High resolution images and transmission in the 700 nm - 1900 nm wavelength of 75% or better.
-
Standard SWIR Lenses
-
VIS-SWIR Lenses
-
Downloads
SWIR Lenses
| Model | Focal Length | Format | F-Stop | Min Obj Area 1" | Min Obj Area 1/2" | Min Obj Area 2/3" | Lens Mount | Iris Control |
| SWIR-6 | 6mm | 1" | 1.8-11 | 267.4 x 196.3 | C | Manual | ||
| SWIR-8 | 8mm | 1" | 1.4-16 | 147 x 110.5 | 73.6 x 55.2 | 101.2 x 75.9 | C | Manual |
| SWIR-12 | 12.5mm | 1" | 1.4-16 | 307.5 x 230.5 | 153.6 x 115.2 | 211.2 x 158.4 | C | Manual |
| SWIR-16 | 16mm | 1" | 1.4-16 | 227 x 170.5 | 113.6 x 85.2 | 156.2 x 117.1 | C | Manual |
| SWIR-25 | 25mm | 1" | 1.4-16 | 192 x 144 | 96 x 72 | 132 x 99 | C | Manual |
| SWIR-35 | 35mm | 1" | 1.4-16 | 133.5 x 100.1 | 66.7 x 50 | 91.8 x 68.8 | C | Manual |
| SWIR-50 | 50mm | 1" | 1.4-16 | 140.8 x 105.6 | 70.4 x 52.8 | 96.8 x 72.6 | C | Manual |
VIS-SWIR Lenses
This lens series maximizes performance from the Visible to SWIR wavelengths simultaneously. The new optical design allows for less focus shift when imaging at various wavelengths. With 5MP resolution, a fast f/1.8 aperture, and coverage from 400 – 1700nm the lenses are ideal for machine vision inspection and surveillance applications. Other application examples include invivo imaging, defense and security, semiconductor/silicon inspection, moisture detection, fill-level detection, and produce sorting.
- Specialized optical design for imaging in both Visible and SWIR
- Optimized transmission from 400 – 1700nm, +50% transmission out to 2000nm
- Covers a 1” (16mm diagonal) sensor
- Standard thumb screws for locking focus and iris functions.
| Model | Description | ||||
| NMV-8M1-VIS-SWIR | 8mm, 1" VIS-SWIR Lens, C-Mount | Contact us for information on lead time. | |||
| NMV-12M1-VIS-SWIR | 12mm, 1" VIS-SWIR Lens, C-Mount | ||||
| NMV-16M1-VIS-SWIR | 16mm, 1" VIS-SWIR Lens, C-Mount | Contact us for information on lead time. | |||
| NMV-25M1-VIS-SWIR | 25mm, 1" VIS-SWIR Lens, C-Mount | ||||
| NMV-35M1-VIS-SWIR | 35mm, 1" VIS-SWIR Lens, C-Mount | Contact us for information on lead time. | |||
| NMV-50M1-VIS-SWIR | 50mm, 1" VIS-SWIR Lens, C-Mount |
