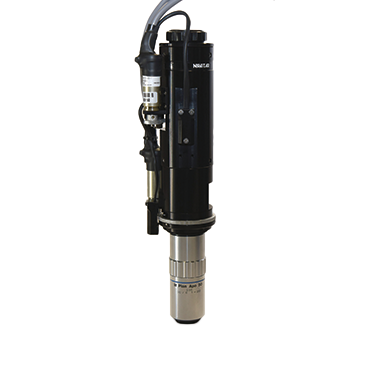

Motorized 12X Zoom Systems
Navitar's motorized design, available on the Zoom 6000 and 12X systems, integrates magnetic Hall Effect sensors with reference position location. Hall Effect sensors are solid state devices with no moving parts.
Integrated Hall Effect Solid State Sensor Technology
Users can choose to motorize both the zoom and focus axis, or just the zoom. Navitar offers three different motor types:
Most motorized lenses are built to order, which may affect standard lead times.
Download Motor Controller Software (34MB zip file).
Integrated Hall Effect Solid State Sensor Technology
- Unaffected by ambient light
- Unaffected by environmental contamination
- Unaffected by line voltage
Users can choose to motorize both the zoom and focus axis, or just the zoom. Navitar offers three different motor types:
- 2-Phase Stepping Motor (Faulhaber)
- 5-Phase Stepping Motor (Oriental, Vexta)
- DC Servo with Encoder (Faulhaber)
Most motorized lenses are built to order, which may affect standard lead times.
Download Motor Controller Software (34MB zip file).
-
Motorized 12X Zoom Options
-
Motorized 12X UltraZoom Options
-
Downloads
Motorized 12X Zoom Part Numbers
| Version | 2-Phase Stepper | 5-Phase Stepper | Encoded/Servo |
| 12mm Motorized Fine Focus | 1-51188 | 1-52000 | 1-51190 |
| 3mm Motorized Fine Focus w/ Coax | 1-51200 | 1-52002 | 1-51202 |
| 12mm Manual Fine Focus | 1-51319 | 1-52004 | 1-51337 |
| 3mm Manual Fine Focus w/ Coax | 1-51311 | 1-52006 | 1-51338 |
| Non Fine Focus, Non Coax | 1-51314 | 1-52008 | 1-51335 |
| Non Fine Focus w/ Coax | 1-51318 | 1-52010 | 1-51336 |
Mounting Options for Motorized Lenses
Navitar also offers flat mounting assemblies for easy integration of our motorized zoom lenses into any application. The flat mounts securely attach to the zoom body using 4 hex screws. Four additional 1/4-20 thru holes are integrated into the mounts to provide a robust attachment point to a machine surface.
12X Mounting Option Part Numbers- 1-51272 (Standard)
- 1-52045 (Imperial)
- 1-52046 (Metric)
Motorized 12X UltraZoom Part Numbers
| Version | 2-Phase Stepper | 5-Phase Stepper | Encoded/Servo |
| 12mm Motorized Fine Focus | 1-51192 | 1-52013 | 1-51194 |
| 3mm Motorized Fine Focus w/ Coax | 1-51196 | 1-52015 | 1-51198 |
| 12mm Manual Fine Focus | 1-51325 | 1-52017 | 1-51333 |
| 3mm Manual Fine Focus w/ Coax | 1-51326 | 1-52019 | 1-51334 |
| Non Fine Focus, Non Coax | 1-51320 | 1-52021 | 1-51331 |
| Non Fine Focus w/ Coax | 1-51324 | 1-52023 | 1-51332 |
Mounting Options for Motorized Lenses
Navitar also offers flat mounting assemblies for easy integration of our motorized zoom lenses into any application. The flat mounts securely attach to the zoom body using 4 hex screws. Four additional 1/4-20 thru holes are integrated into the mounts to provide a robust attachment point to a machine surface.
12X Mounting Option Part Numbers- 1-51272 (Standard)
- 1-52045 (Imperial)
- 1-52046 (Metric)
