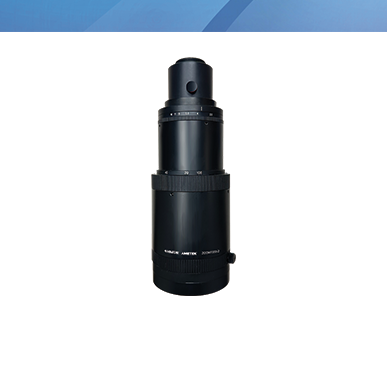

Zoom 7000-2 Macro Lens

Navitar’s ZOOM 7000-2 next generation macro imaging system has been redesigned, refined, and optimized for demanding applications in machine vision, industrial imaging, life science and research.

With exceptional optical performance, this versatile, close-focusing lens delivers excellent image quality across various magnification ranges. Its robust construction ensures reliability in challenging environments while delivering excellent value and flexibility.

Now available for VIS and VIS-SWIR spectral ranges.

Lens and Camera Kit:
We have paired the Zoom 7000-2 with a Pixelink USB PL-D753CU-T camera (1-101674). Contact your account manager for more information.


  • Description
  • Specifications
  • Downloads
  • Part Numbers

Next-Gen Model

Navitar’s ZOOM 7000-2 next generation macro imaging system has been redesigned, refined, and optimized for demanding applications in machine vision, industrial imaging, life science and research.


Features

  • 18-111mm focal length with manual zoom
  • Working distance 5” to infinity
  • Parfocal across entire zoom range
  • Image capture of objects larger than 1” ø
  • Compatible with sensors 2/3” or smaller

Specifications
Part Number  Zoom 7000-2
Focal Length (mm)
18.6 - 111 (6X)
Sensor Size 2/3” (Ø11)
Iris Range (F-Stop) 2.5 - 16
Lens Type Zoom Lens
Wavelength Range VIS (430nm - 670nm)
Focusing Range (mm) 127 - ∞
Resolution, Center 100
Resolution, Corner 60
Distortion (TV) (%) W 2.3% / T 1.3%
Mount C-mount
Iris Control Manual
Zoom Control Manual
Focus Control Manual
Filter Size (mm) M58.0 x 0.75
Size (mm) Ø 67 x 178.2
Weight (g) 840
Temperature Range -10°C - +50°C
Horizontal Field of View, 2/3" Sensor
127mm WD 8.8mm - 51mm
177mm WD 13.2mm - 80mm
227mm WD 17.5mm - 106mm
277mm WD 21.8mm - 129mm
302mm WD 24.0mm - 141mm
500mm WD - No Close-up Lens 34.6mm - 249mm
1000mm WD - No Close-up Lens 74.6mm - 484mm
Applications Quality Control, Machine Vision, Biomedical Imaging
