Machine Vision Cameras
Pixelink’s USB 3.0 camera series delivers high-performance imaging solutions tailored for OEMs and organizations demanding reliable, fast, and high-quality machine vision. Leveraging the latest CMOS sensor technology from leading manufacturers these cameras offer resolutions up to 24 MP, and support for both color and monochrome imaging. The result is crisp, low-noise images suitable for a wide range of industrial and scientific applications, from electronics inspection to biometrics and flat panel display analysis.

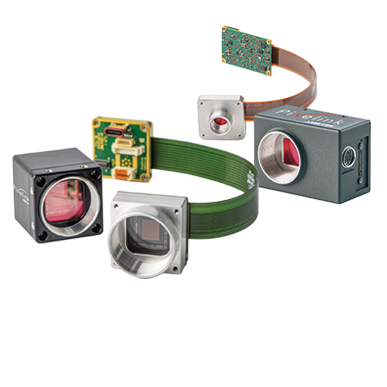

Designed for easy integration and flexibility, Pixelink cameras are available in compact enclosed, board-level, and flex cable configurations, making them ideal for both off-the-shelf and custom vision systems. Autofocus models-utilizing advanced liquid lens technology-enable rapid, silent, and precise focus adjustment for sensor formats up to 1.1", supporting applications that require dynamic focusing from close-up to infinity.
Key features include:
-
USB 3.0 interface for high-speed data transfer and power delivery
-
Resolutions from 2 MP to 24 MP
-
Support for a variety of sensor sizes (1/1.7" to 1.2") and pixel pitches
-
Global and rolling shutter options to suit diverse imaging needs
-
Hardware trigger and GPIO for easy system integration
-
Small form factor with board-level and flex cable options for space-constrained designs
-
Autofocus models with liquid lens technology for fast, reliable focusing up to 1.1” sensors
-
Sony, onsemi, ams OSRAM (CMOSIS) and Gpixel
Whether upgrading legacy systems or building new machine vision solutions, Pixelink’s USB 3.0 cameras provide the versatility, speed, and image quality required for today’s demanding industrial environments.
-
PL-U Models
-
PL-D Models
-
Downloads
| Camera Model | Resolution | Size | Sensor | FPS | Pixel Size (H x V, µm) |
Shop Now |
| PL-U752 | 2.3 | 1/1.2" | IMX174 | 163 | 5.86 x 5.86 | Contact Us |
| PL-U753 (HDR) | 2.8 | 2/3" | IMX421 | 143 |
4.5 x 4.5 |
Contact Us |
| PL-U795B |
5. | 1./1.8" | IMX547 | 75.4 | 2.74 x 2.74 | Contact Us |
| PL-U755 |
5 | 2/3" | IMX250 | 75.7 | 3.45 x 3.45 | Contact Us |
| PL-U7620 |
20 | 1" | IMX183 | 20 | 2.4 x 2.4 | Contact Us |
| Camera Model | Resolution | Size | Sensor | FPS | Pixel Size | Shop Now |
| PL-D7924 | 24 MP | 1.2" | Sony IMX540 | 17 | 2.74 µm |  |
| PL-D7920 | 20 MP | 1.1" | Sony IMX541 | 17 | 2.74 µm | |
| PL-D7620 | 20 MP | 1" | Sony IMX183 | 20 | 2.4 µm | |
| PL-D7512 | 12 MP | 1.1" | Sony IMX253 | 35 | 3.45 µm | |
| PL-D7912 | 12 MP | 1.1" | Sony IMX304 | 23 | 3.45 µm | |
| PL-D759 | 9 MP |
1" | Sony IMX255 | 48 | 3.5 µm | |
| PL-D799 | 9 MP | 1" | Sony IMX267 | 32 | 3.5 µm | |
| PL-D797 | 7.1 MP | 1.1" | Sony IMX428 | 51 | 4.5 µm | |
| PL-D757 (HDR) | 7.1 MP | 1/1" | Sony IMX420 | 57 | 4.5 µm | |
| PL-D755-POL | 5 MP | 2/3" | Sony IMX250MZR | 53 | 3.45 µm | |
| PL-D755 | 5 MP | 2/3" | Sony IMX250 | 81 | 3.45 µm | |
| PL-D795 | 5 MP | 2/3" | Sony IMX264 | 36 | 3.45 µm | |
| PL-D734 | 4.2 MP | 1" | CMOSIS cmv4000 | 90 | 5.5 µm | |
| PL-D753 (HDR) | 2.8 MP | 2/3" | Sony IMX421 | 143 | 4.5 µm | |
| PL-D782 | 2.4 MP |
1/1.7" | Gpixel GMAX 400Sony IMX4212 | 159 | 4.0 µm | |
| PL-D752 | 2.3 MP | 1/1.2" | Sony IMX174 | 167 | 5.86 µm | |
| PL-D732 | 2.2 MP | 2/3" | CMOSIS cmv2000 | 170 | 5.5 µm | |
| PL-D7715 (EOL) | 15 MP |
1/2.3" | onsemi MT9F002 | 13 | 1.4 µm | |
| PL-D7718 (EOL) |
18 MP | 1/2.3" | onsemi AR1820 | 14 | 1.8 µm | |
| PL-D725 (EOL) |
5.3 MP | 1" | onsemi Vita 5000 | 76 | 4.8 µm | |
| PL-D726 (EOL) | 6.6 MP | 1" | onsemi IBIS 4 | 5.3 | 3.5 µm | |
| PL-D775 (EOL) |
5 MP | 1/2.5" | MT9P031 (Color) | 14 | 2.2 µm | |
| PL-D722 (EOL) |
2.3 MP | 2/3" | onsemi Vita 2000 | 87 | 4.8 µm | |
| PL-D721 (EOL) |
1.3 MP | 1/2" | onsemi Vita 1300 | 151 | 4.8 µm | |
| PL-D721P (EOL) |
1.3 MP | 1/2" | onsemi Python 1300 | 212 | 4.8 µm |
*EOL - End of Life. This indicates the number we have left can still be sold, however once those are gone, we cannot build anymore.
